Description

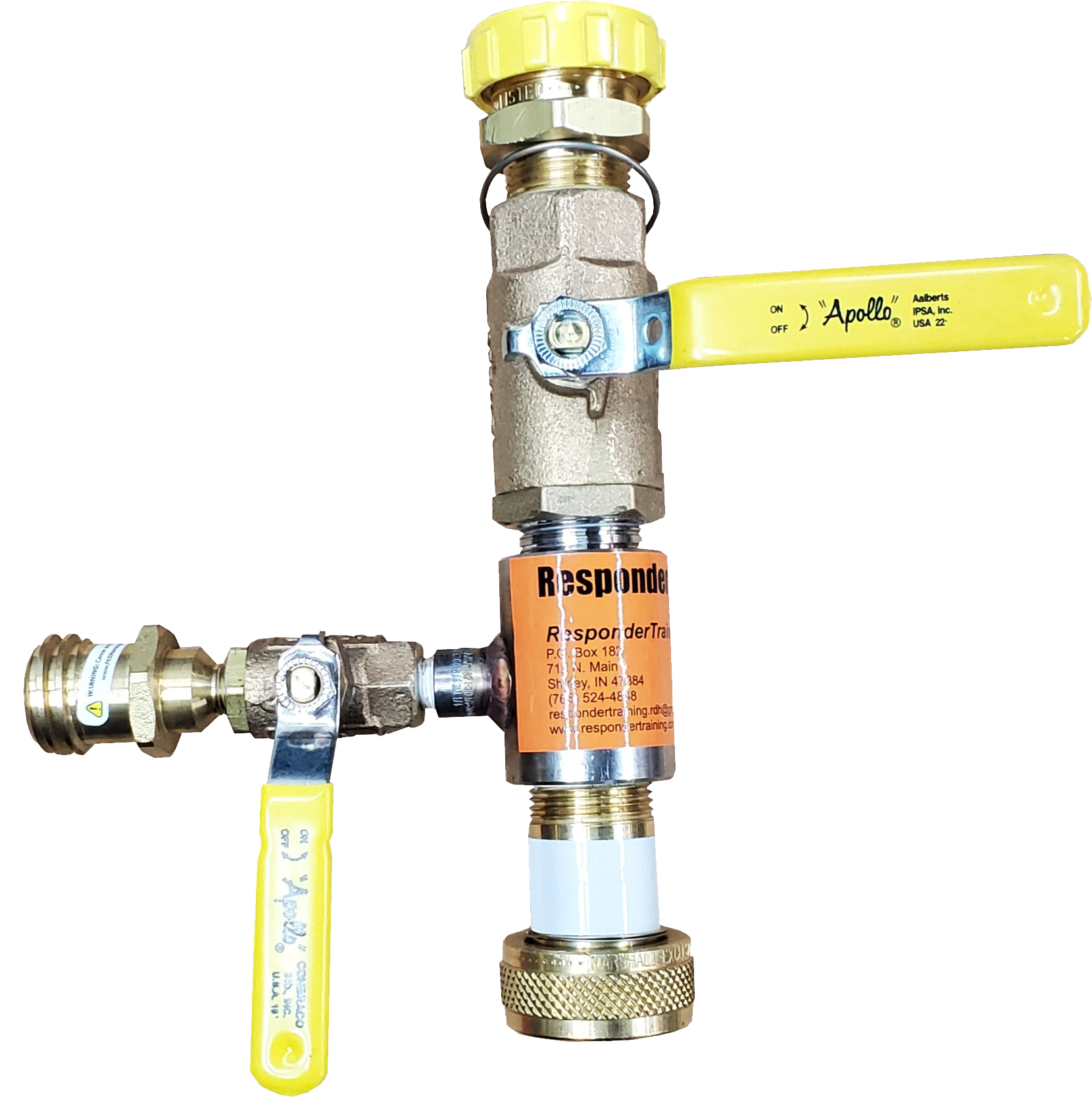

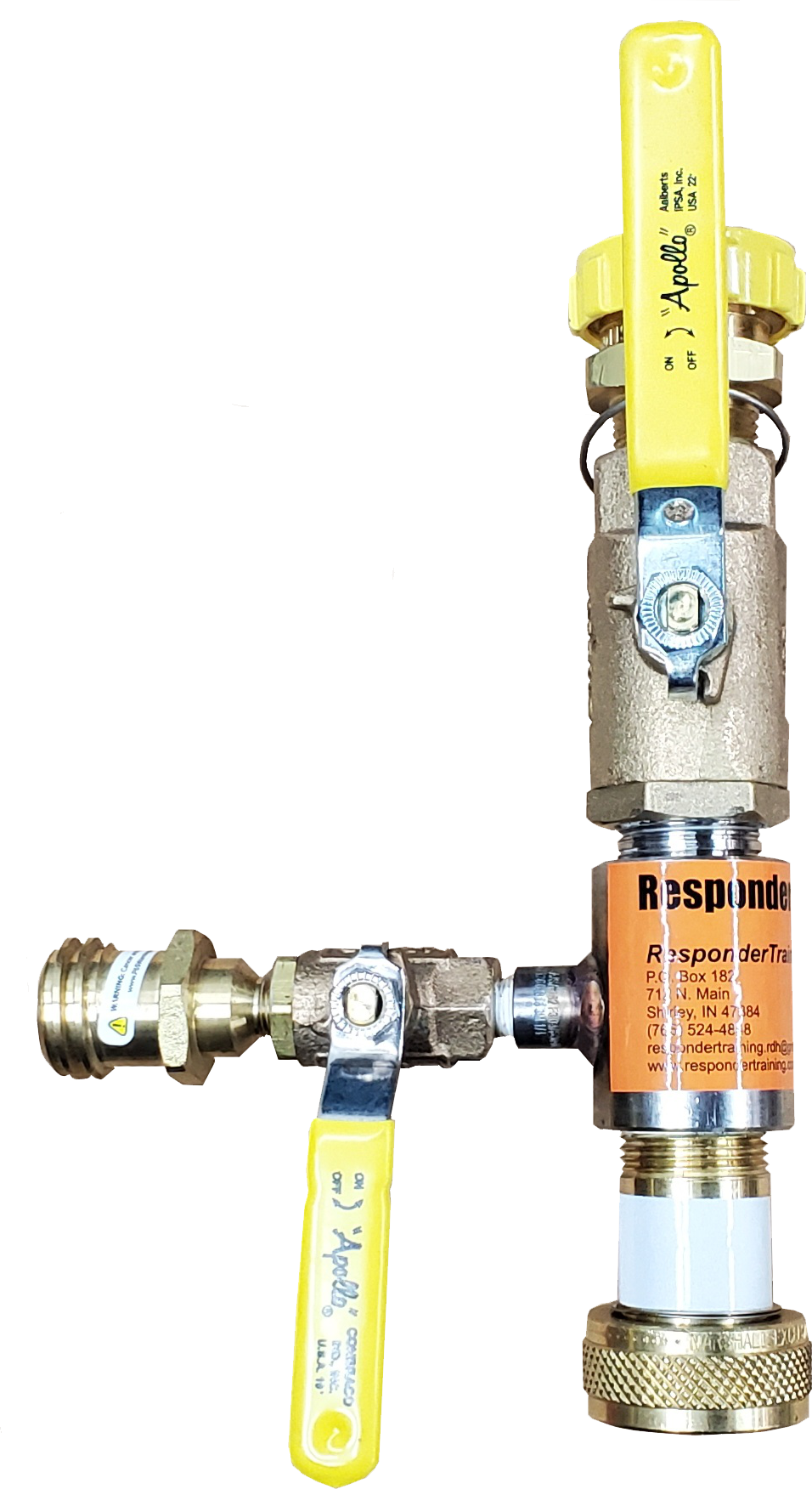

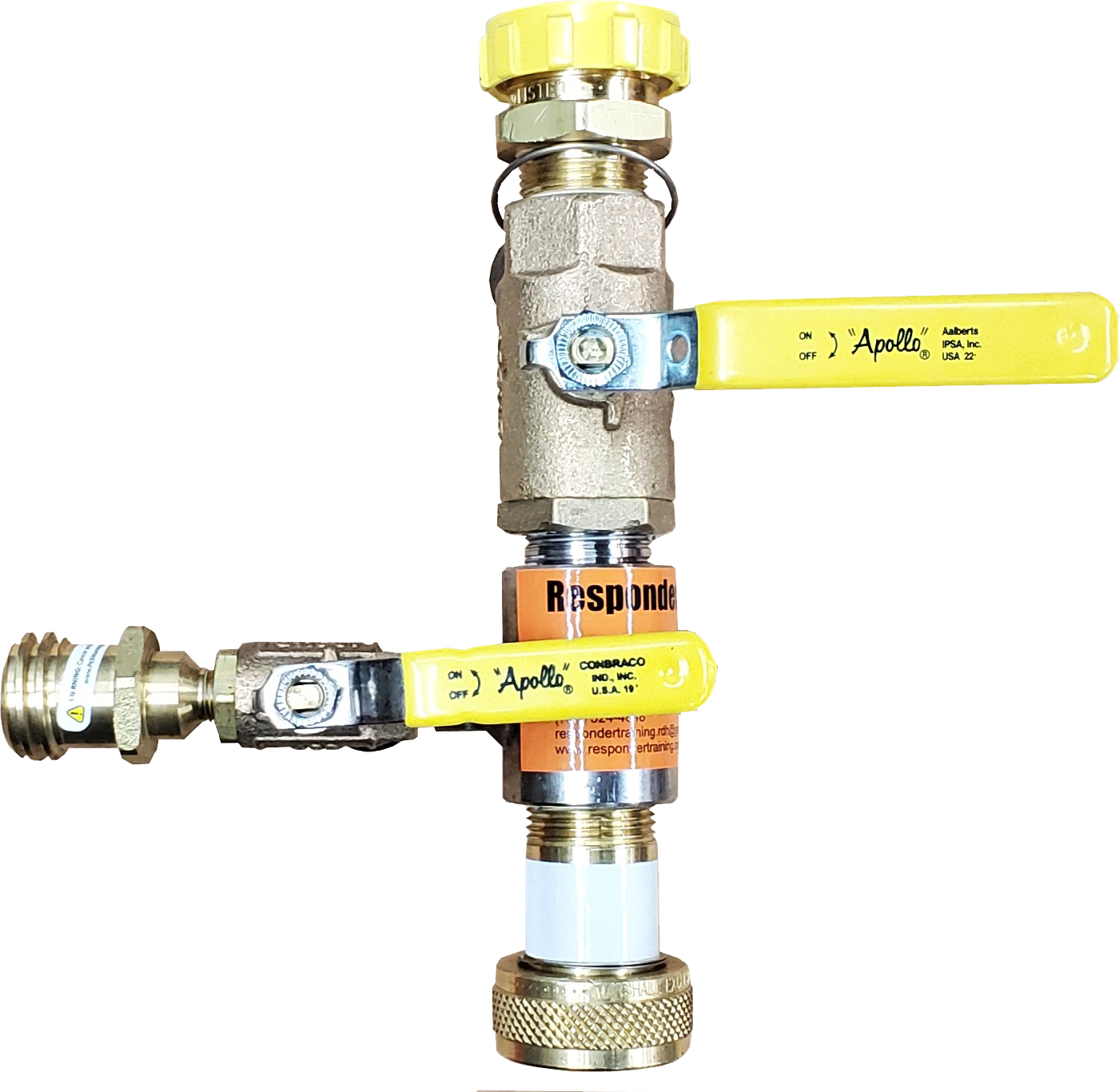

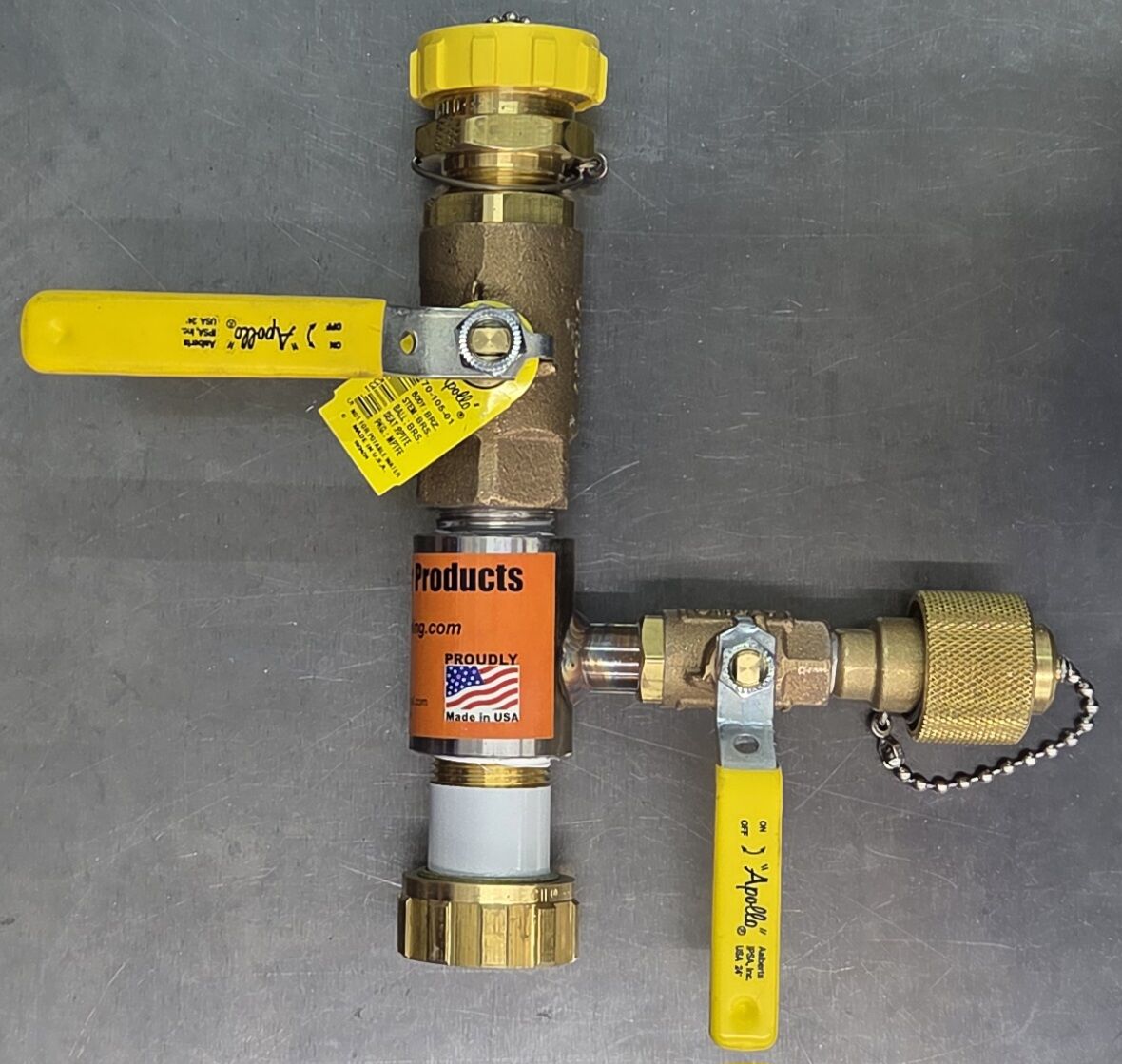

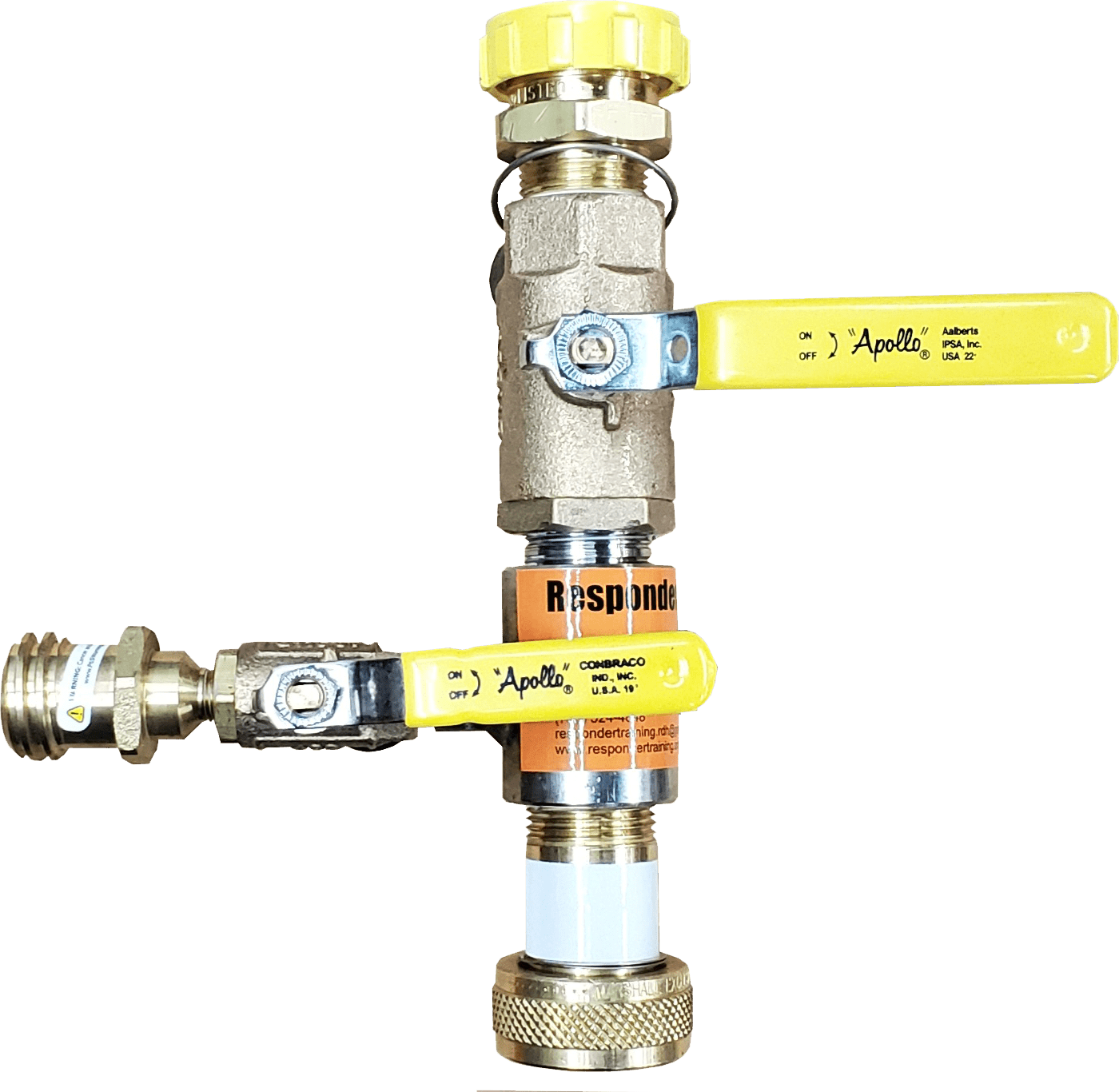

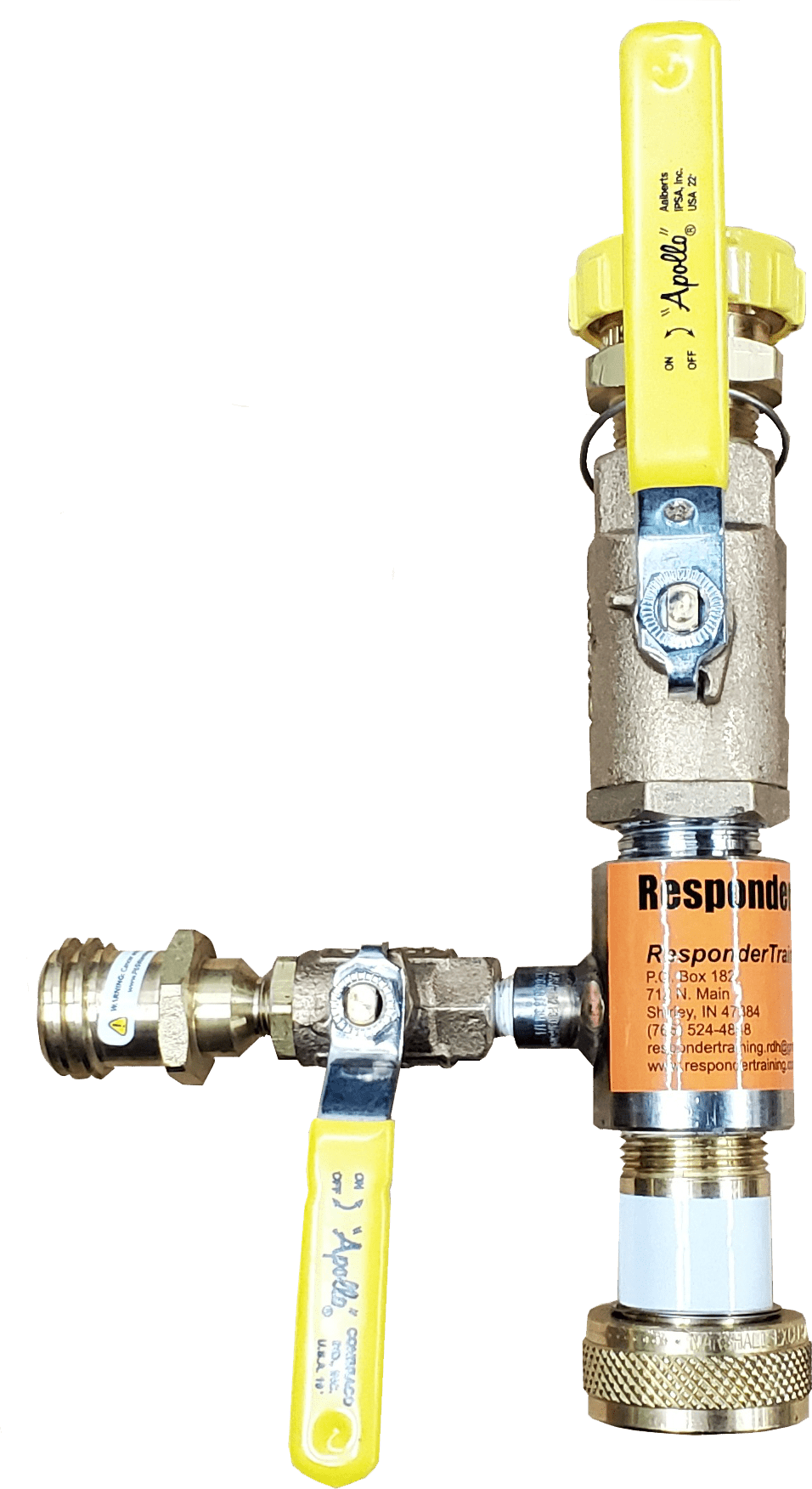

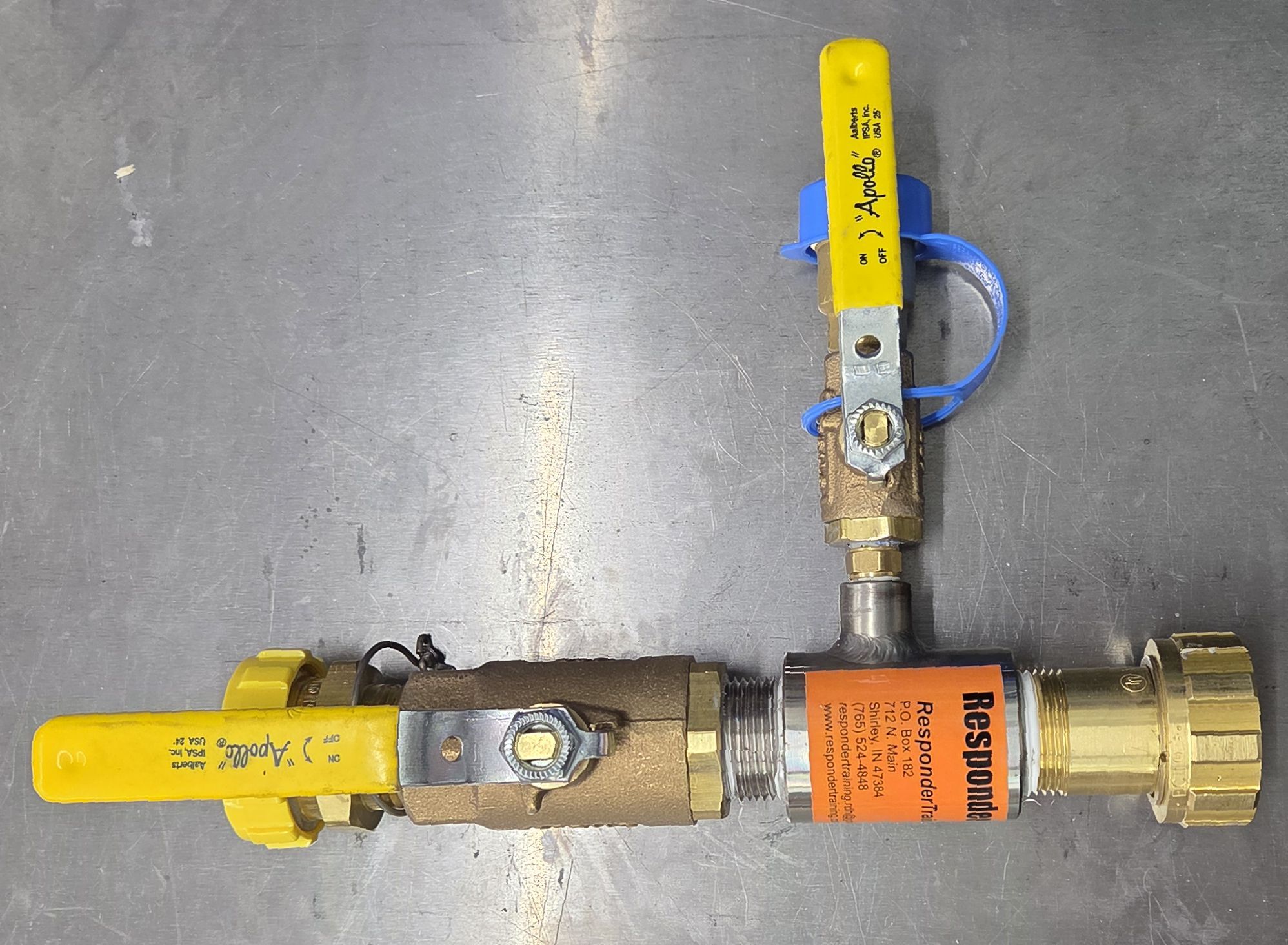

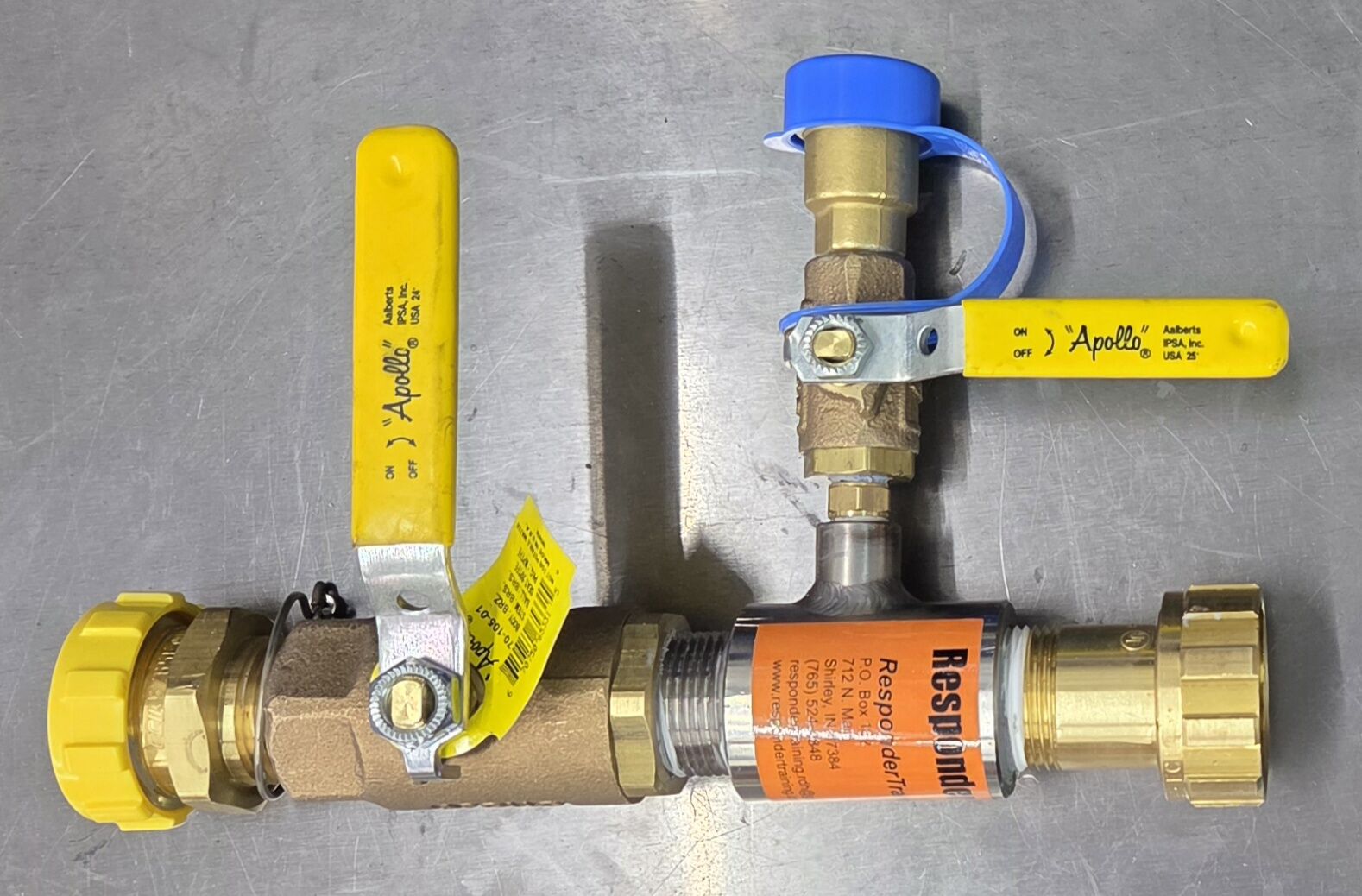

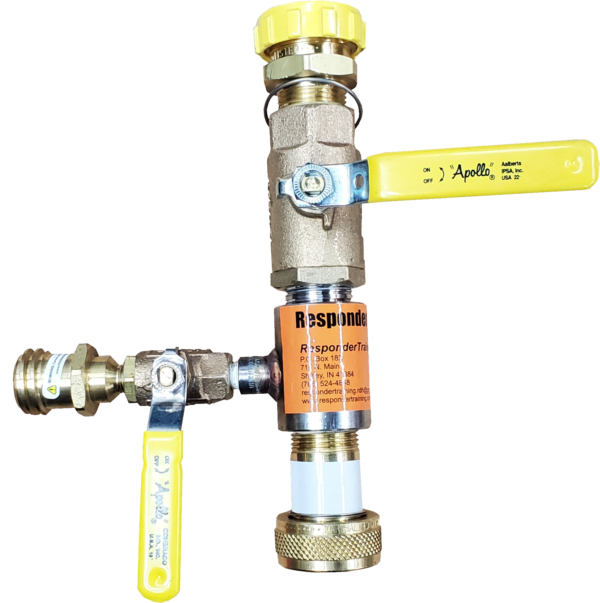

Our In Line Regulator Port and control Valve has been designed to allow the pilot burner regulator to be placed in the main flare hose system. Eliminating the need for a alternative propane source for the 1-inch flare pilot.
- This unit is intended for continuous vapor service operations and intermediate liquid service due to regulator capabilities. This unit has been designed to operate at full tank pressures.
- 1 – 1-3/4″ male ACME x 1″ male NPT
- 1 – 1-3/4″ female ACME x 1″ male NPT
- 1 – 1-3/4″ ACME Cap and Chain
- 1 – 1″ full flow bronze ball valve
- 1 – 1″ x Close nipple
- 1 – 304 stainless steel coupling with a 1/4″ port
- 1 – 1/4″ x Close nipple
- 1 – 1/4″ full flow bronze ball valve
- 1 – 1-5/16″ QCC Type 1 male connector with internal safety seat
- 1 – 1-5/16″ ACME brass cap
It can also be used as just a in-line flow control valve.
