Description
THE RESPONDER PROPANE FLARE™ aka “The Dragon Slayer™”
The only 1 inch propane flare available

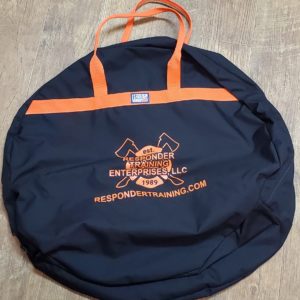

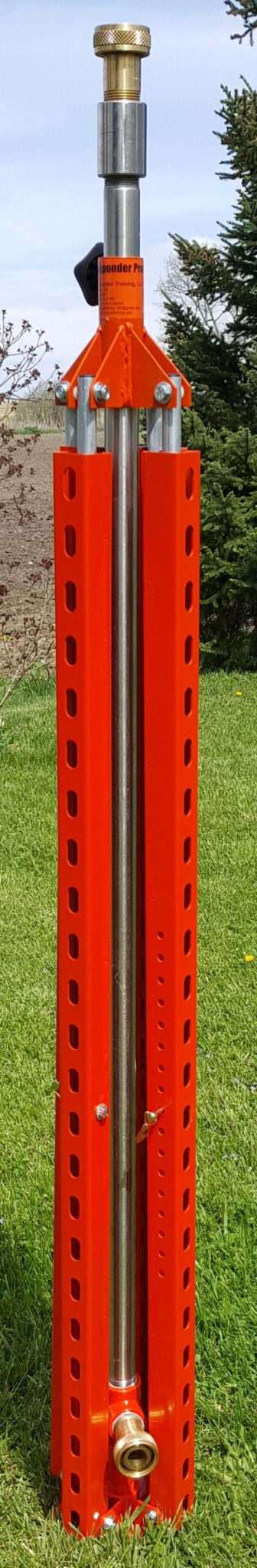

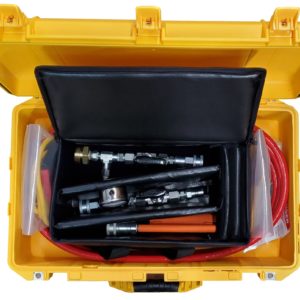

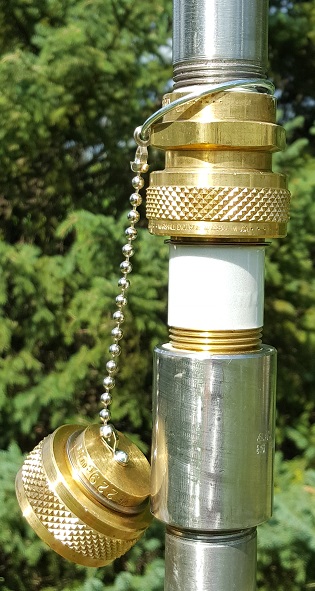

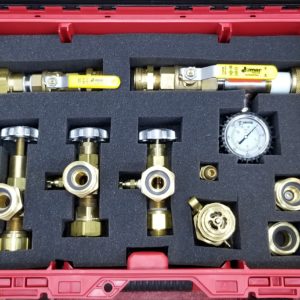

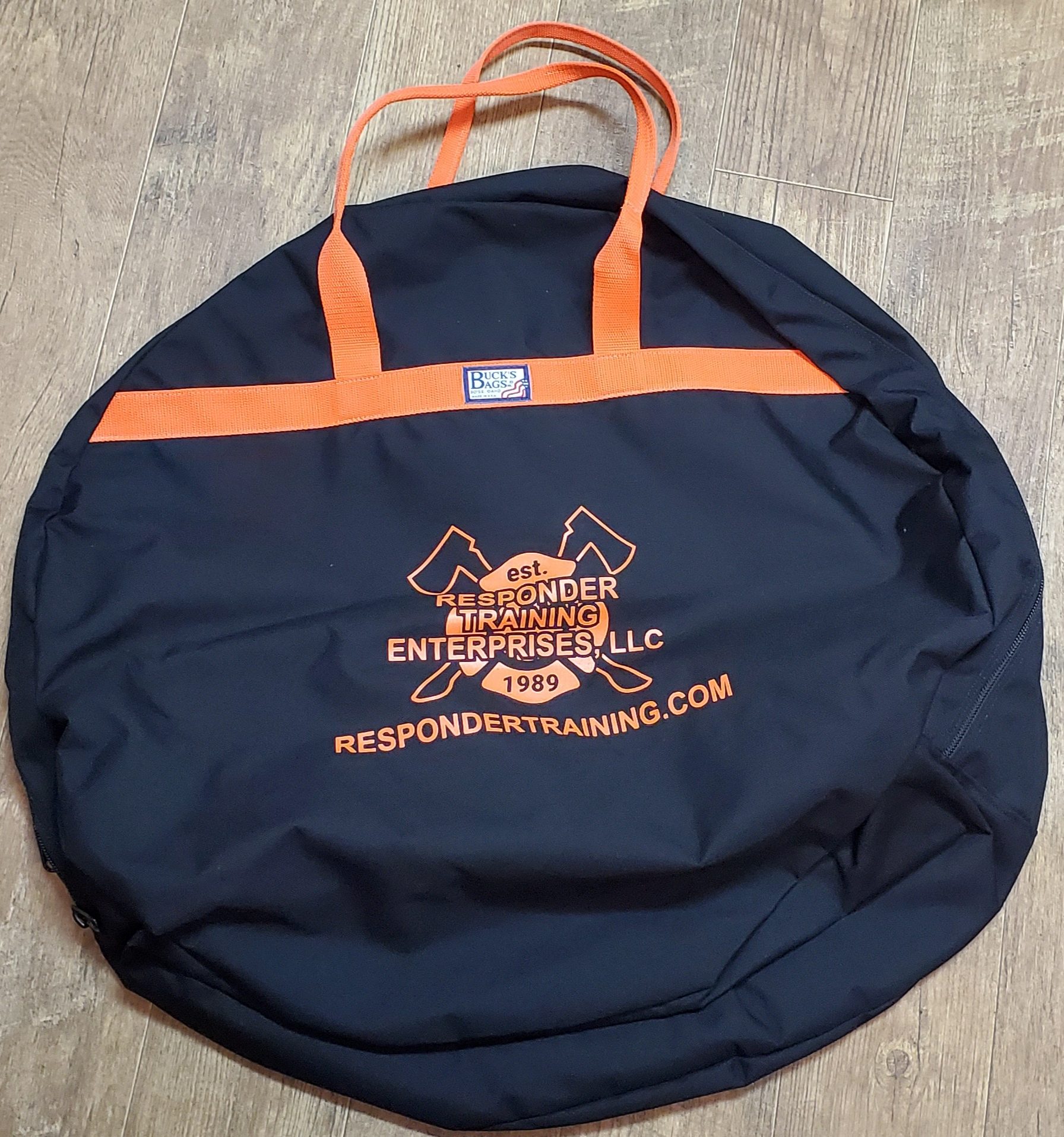

Propane flares come in varied flow capacities. “THE RESPONDER PROPANE FLARE™” aka “The Dragon Slayer™” provides you with the tool necessary to move large volumes of propane using industry standard 1 3/4” ACME connections, 1” hose, pipe and fittings. The system flows more than twice the capacity of others on the market. The 1 inch propane flare known as the “THE RESPONDER FLARE” aka “The Dragon Slayer” and the additional Basic Connection Kit allows you to switch between an assortment of cylinders, tanks and piping systems with no tools required reducing time and the potential for leaks. The system folds into a compact storage bag making it quick and easy to deploy when needed even in remote locations.

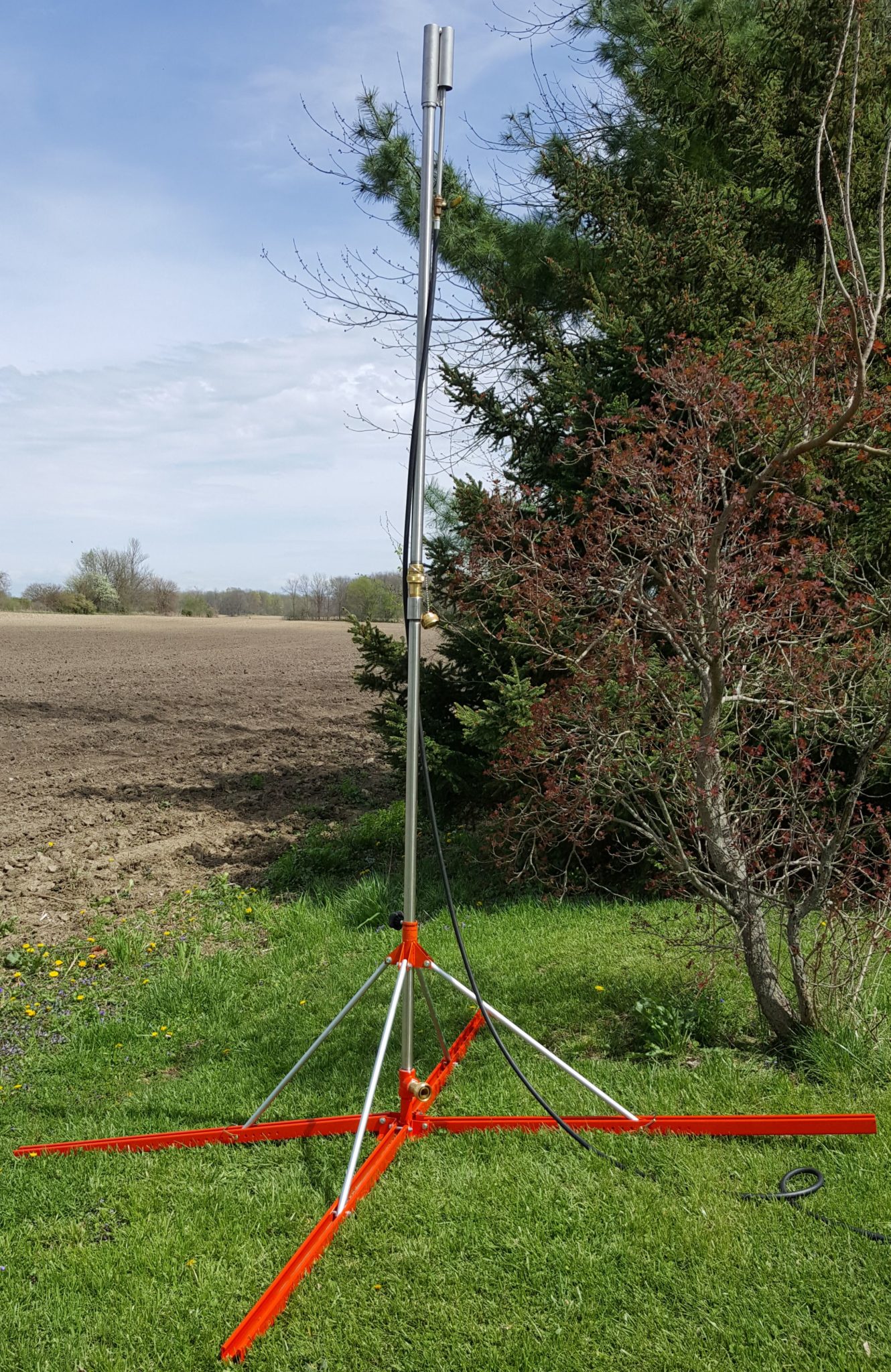

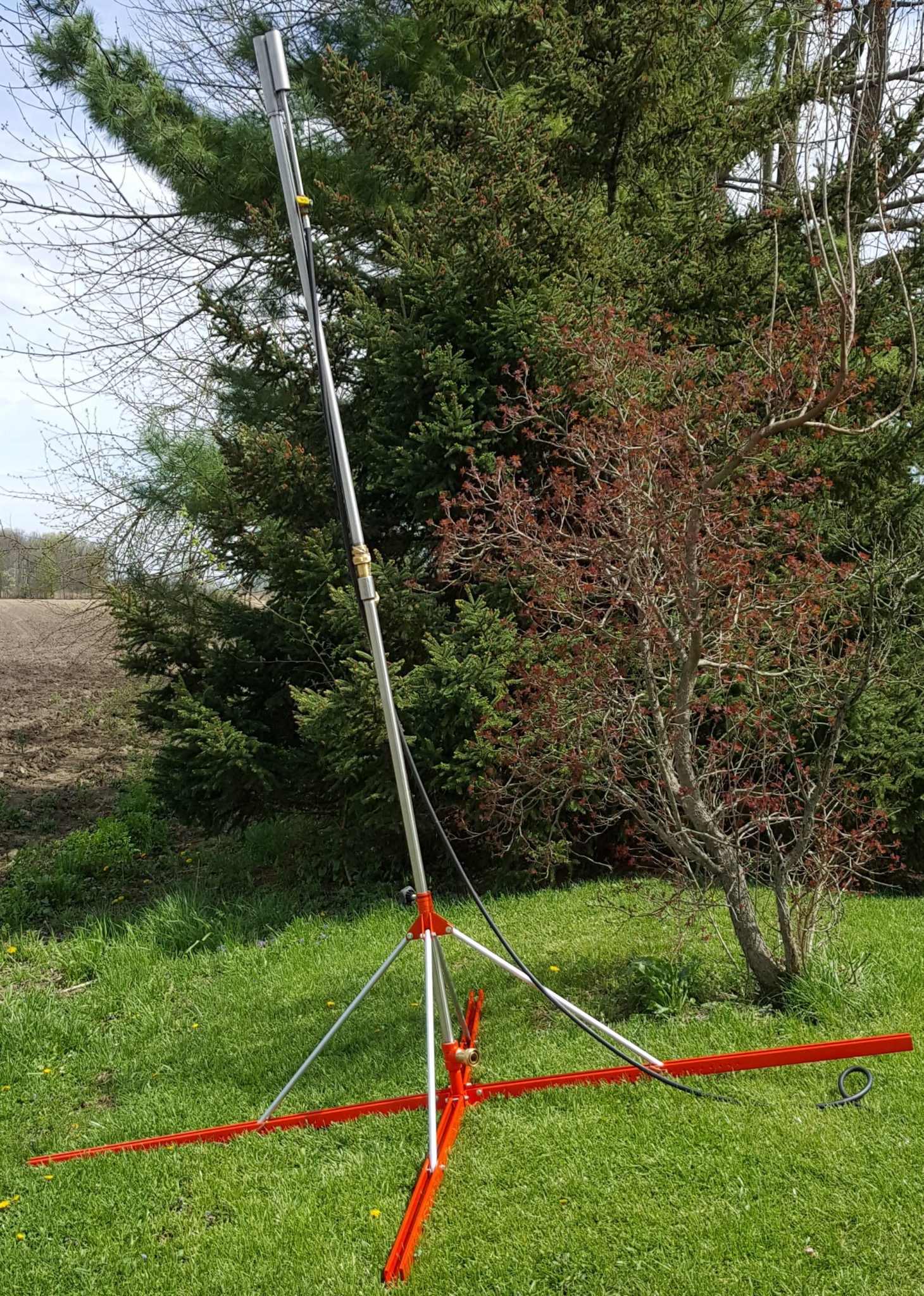

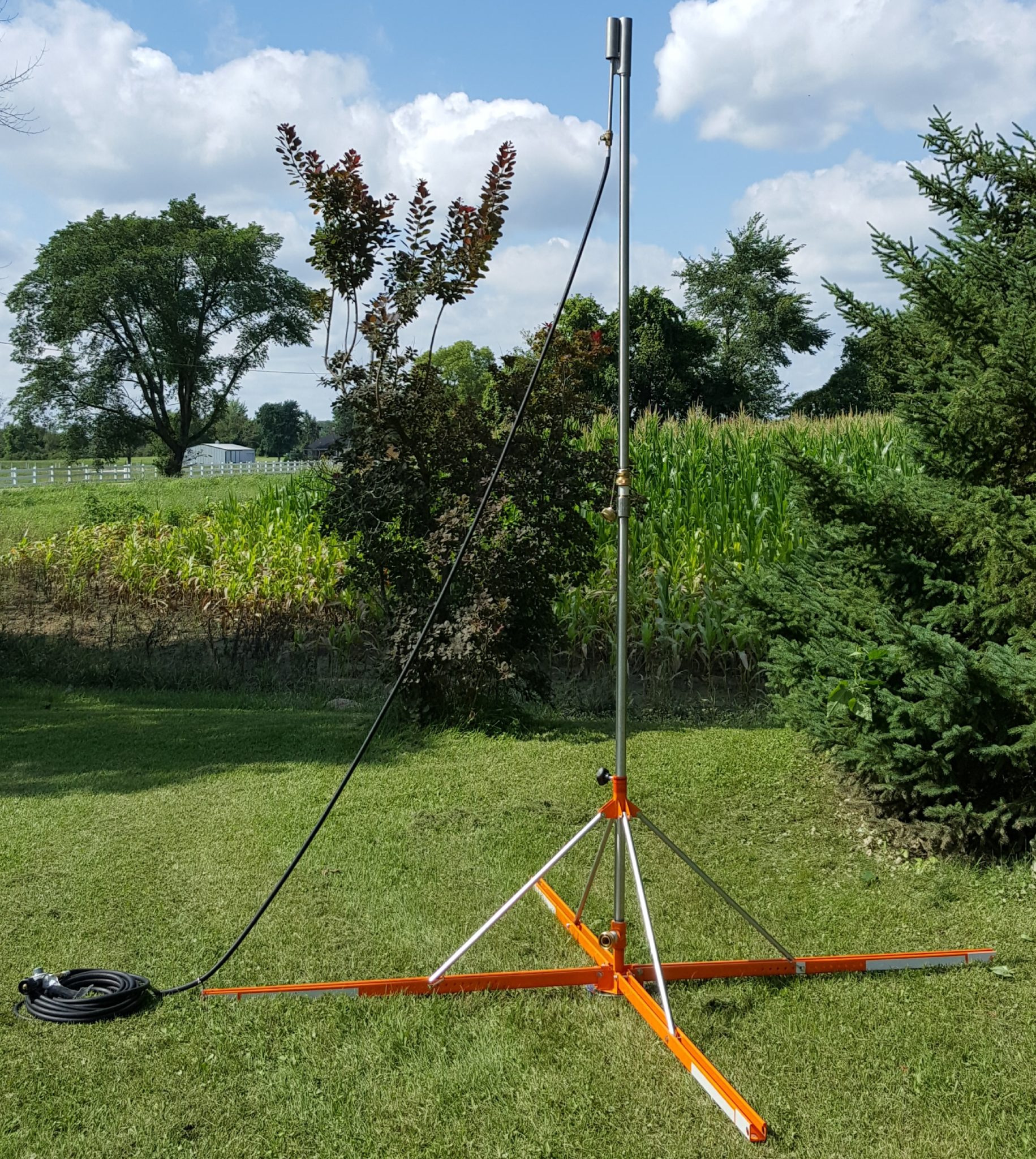

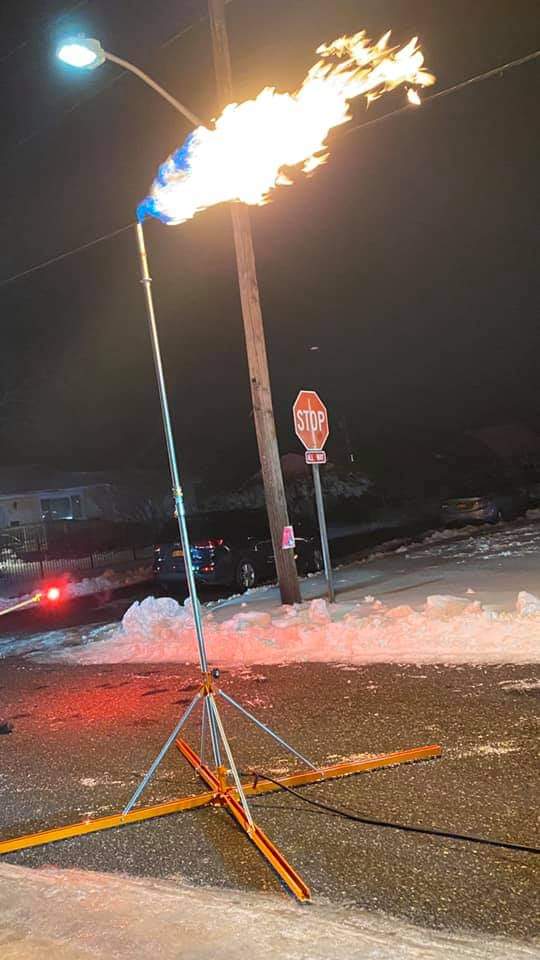

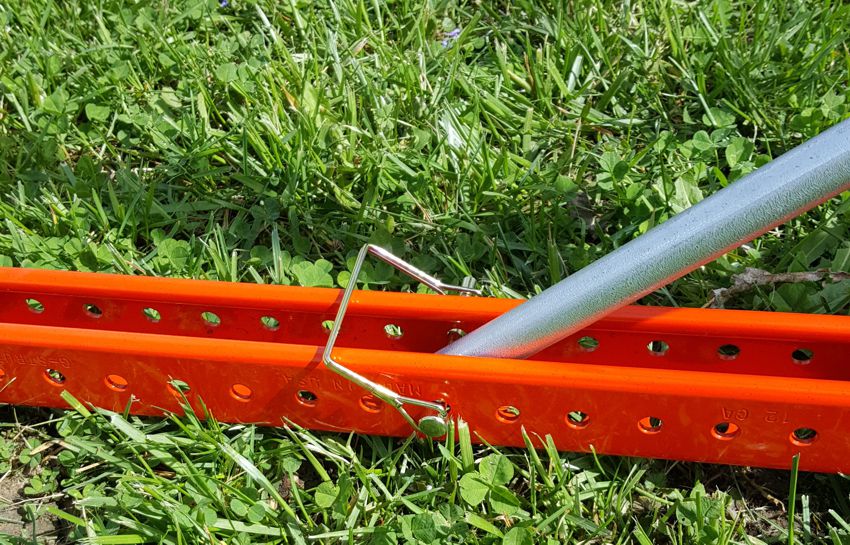

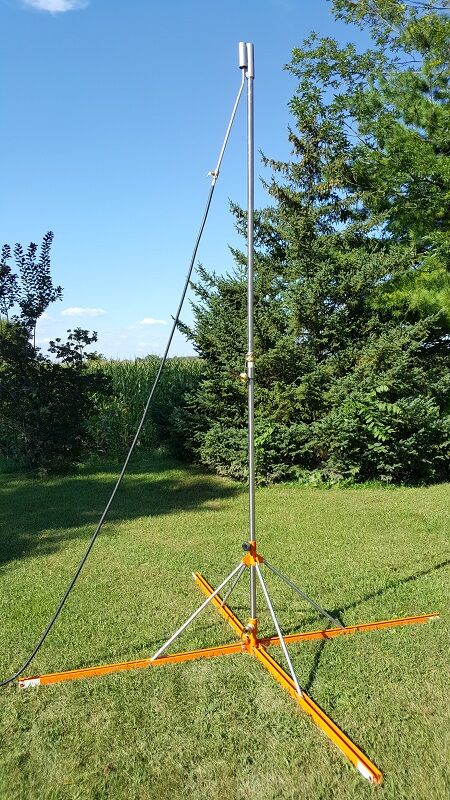

Completely assembled the tip of the flare stands a full 10 foot tall and has over 64 sq. foot of stable base that won’t require staking or sand bags under normal conditions. The base has been designed to allow the propane flare to be set up on up to a 20-degree slope and still maintain a vertical propane flare stack for those times when the emergency or job site is just not flat. Or it can be tilted to protect your propane hose from liquid run down.
Since the main burner and Pilot Burner Assembly are constructed using 304 Stainless Steel they are not susceptible to flame damage from liquid rundown. Designed by a 30-year firefighter/hazmat tech with 14 years in the propane industry we’ve built something that we would want to own. This is a lifetime response device that will outlast your career with reasonable care and maintenance.
I could almost say it’s fireman proof, but really what is?

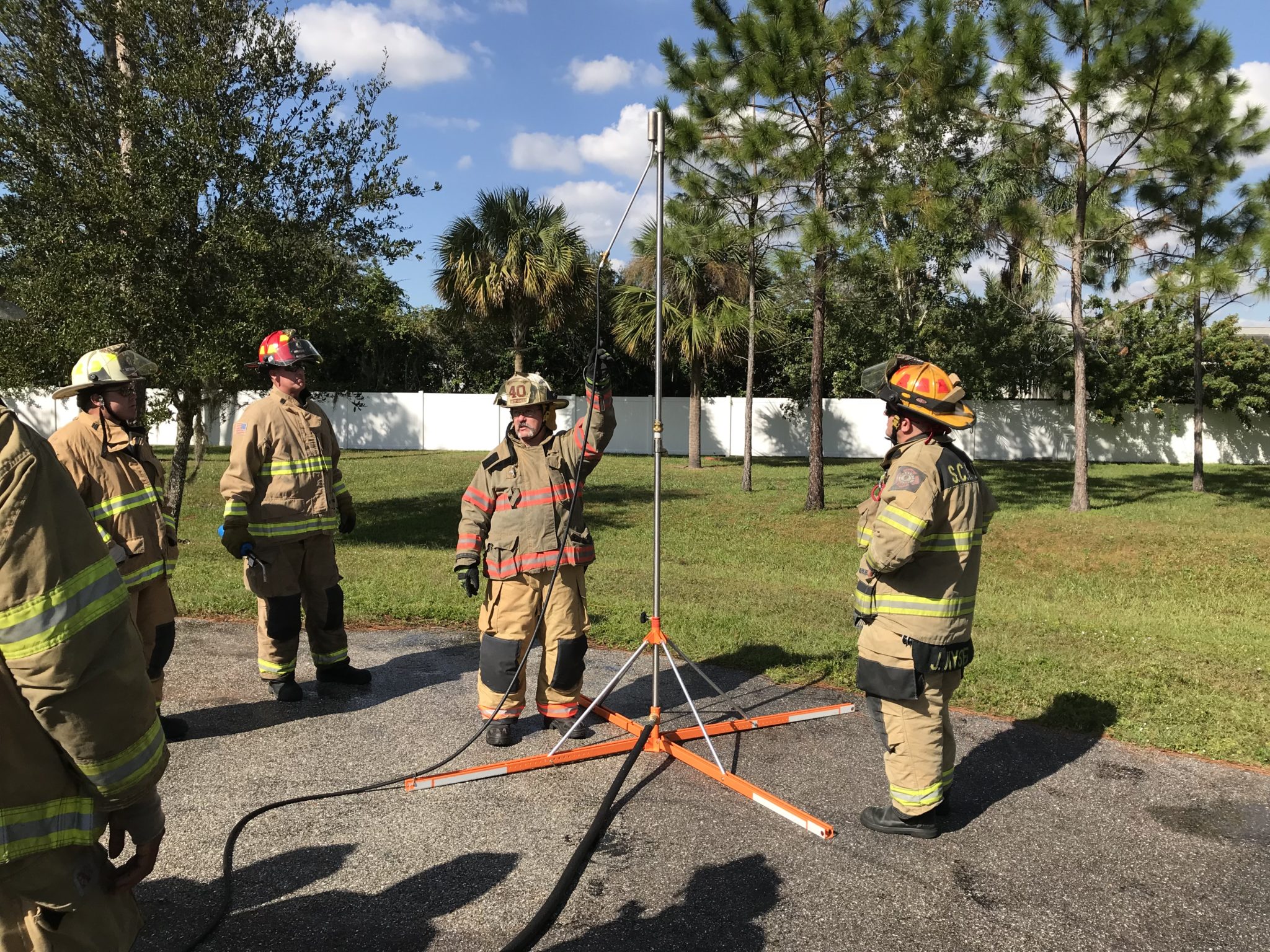

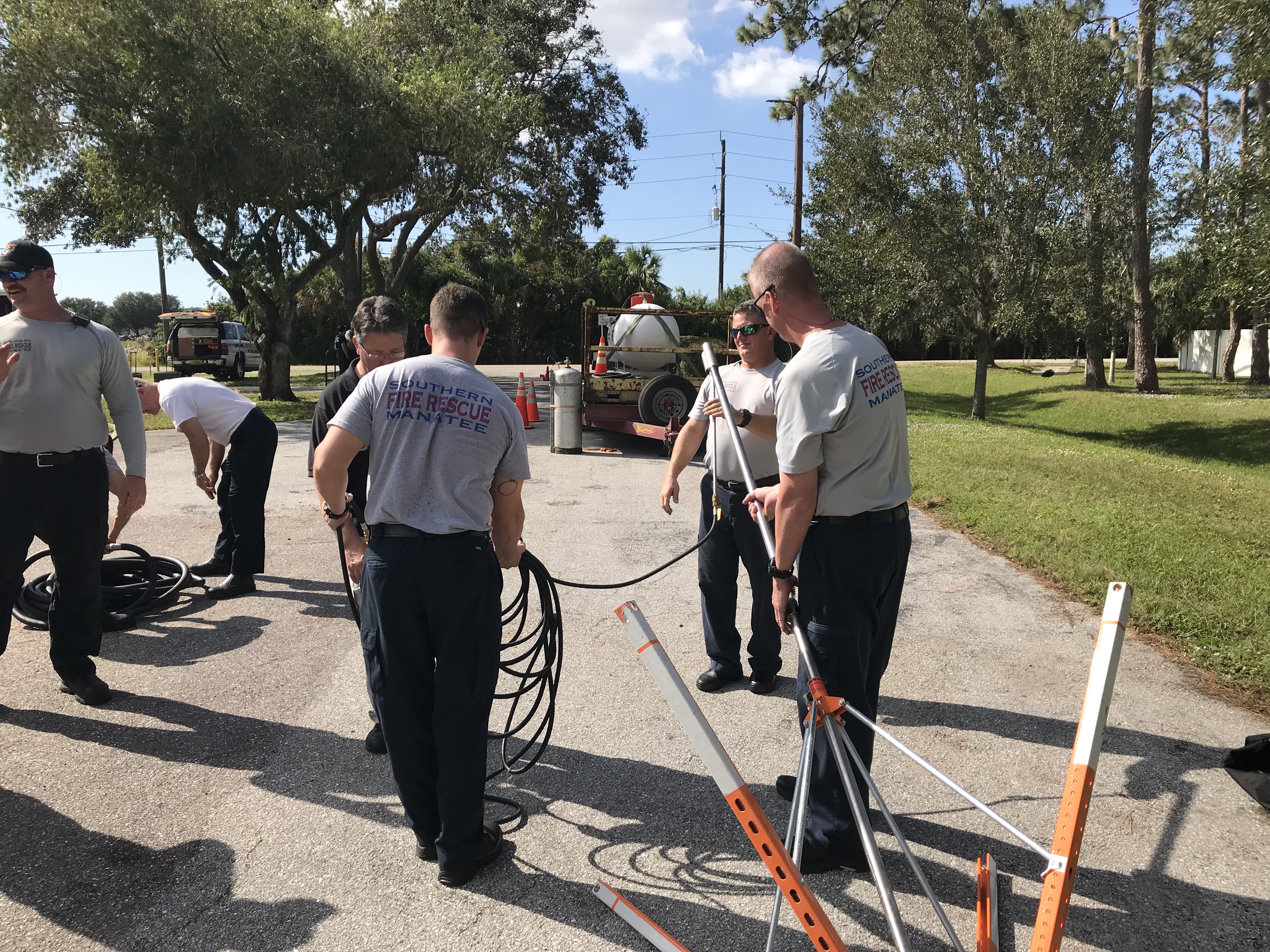

When you need a flare for an emergency situation, time and temperature are not on your side, the capability to move larger volumes and higher capacities are a must. “THE RESPONDER FLARE” aka “The Dragon Slayer” is recommended for Fire Departments, HazMat teams, rail crews, propane dealers and anyone else that needs to safely reduce the volume of liquid or vapor pressure in a system.
Flare Specifications
- 1 inch components
- Flare over 1300 GPH
- 118,732,900 BTU Hour
Flare Vapor or Liquid
- Stainless Steel Flare Stack

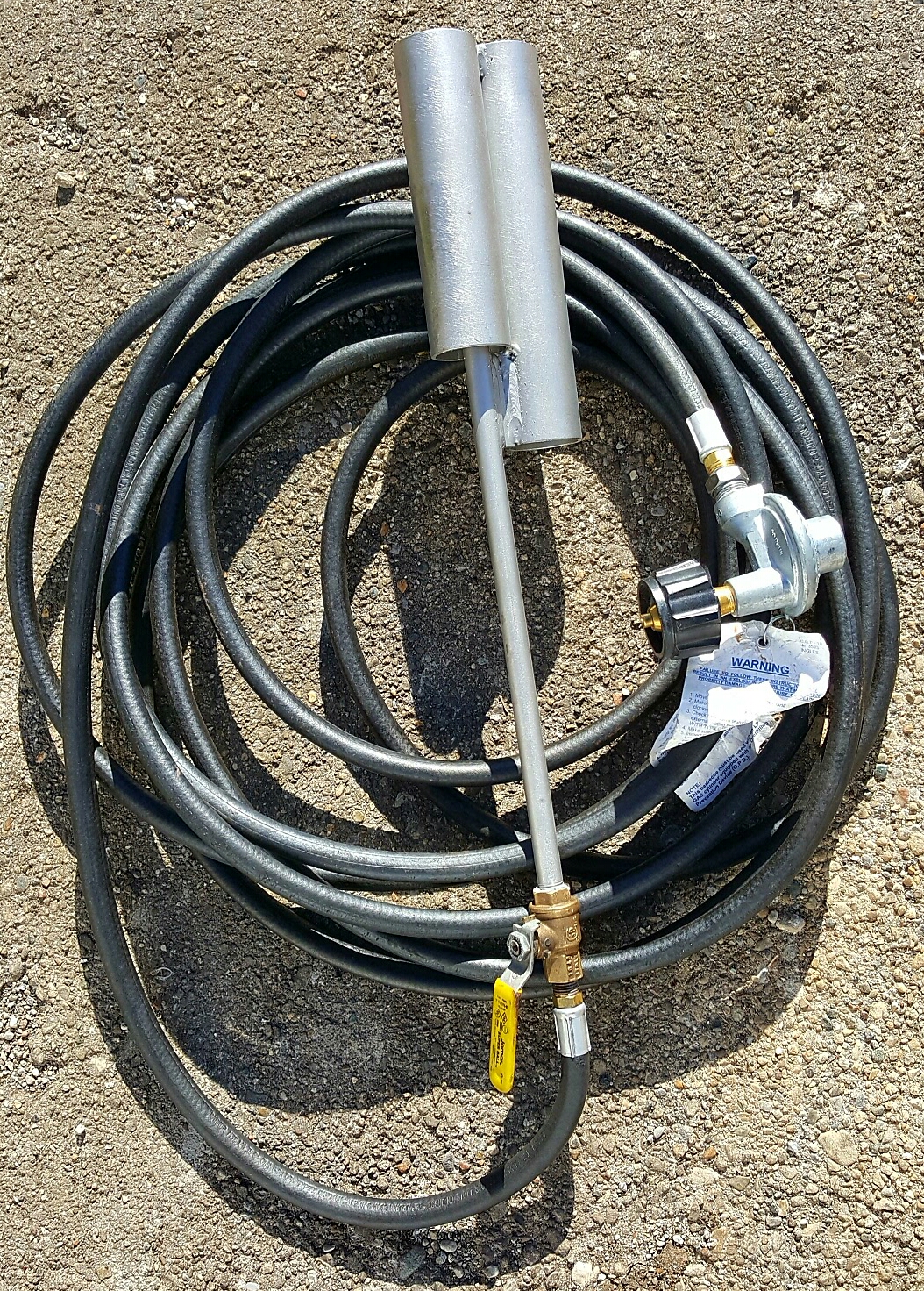

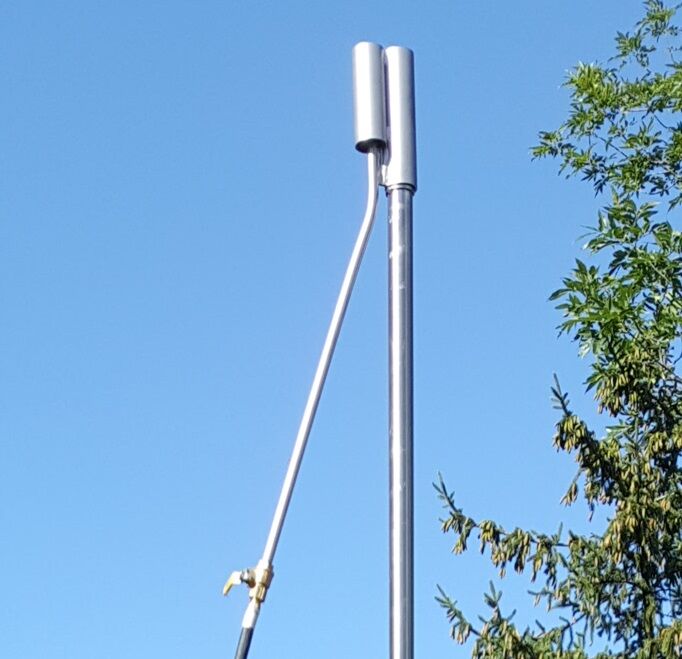

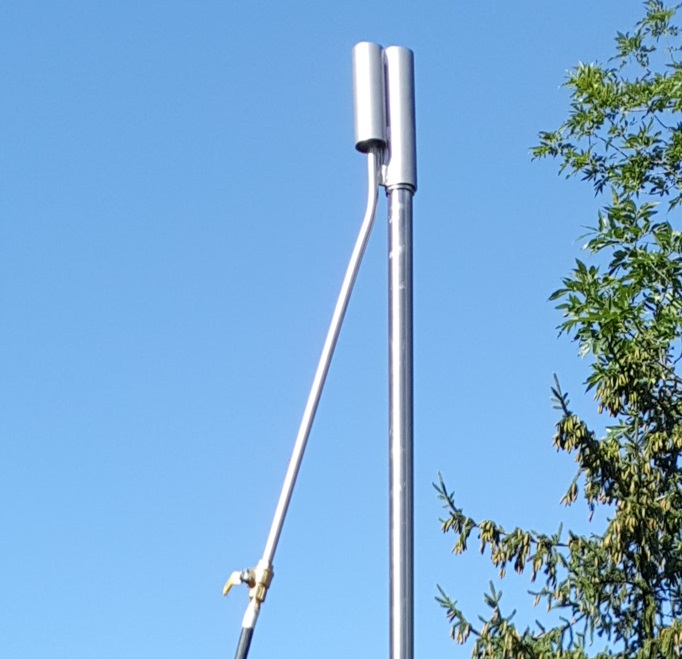

- Removable Stainless Steel Pilot Burner Assembly
- Stainless Steel Hardware

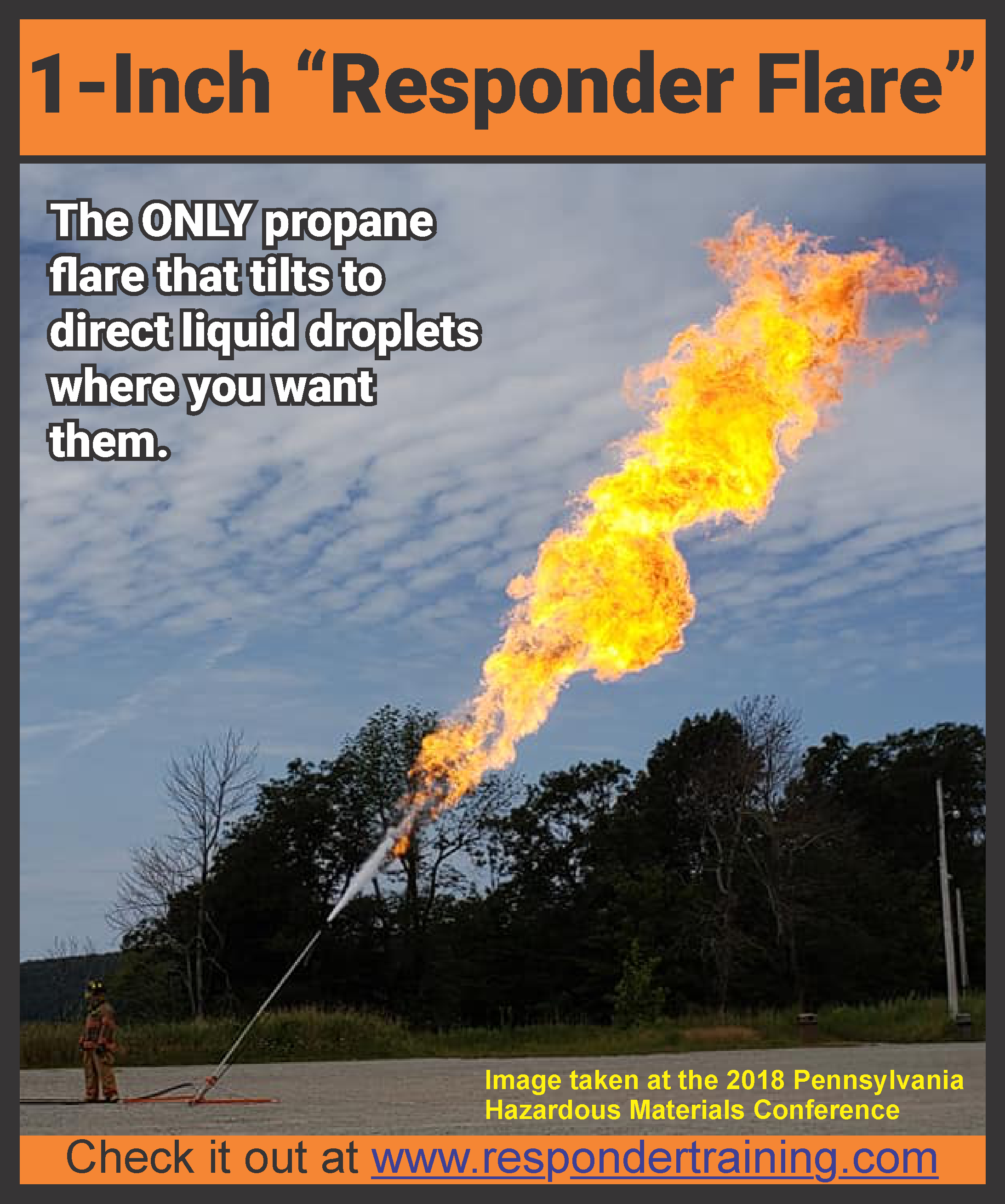

- Able to withstand burning liquid run down when tilted

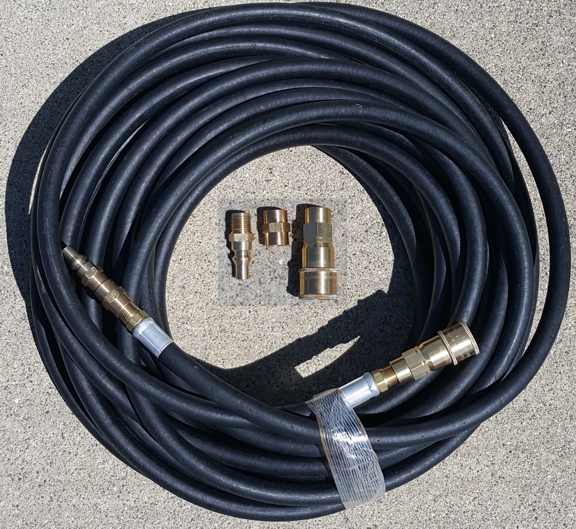

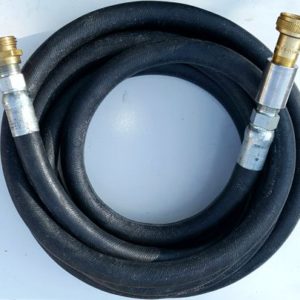

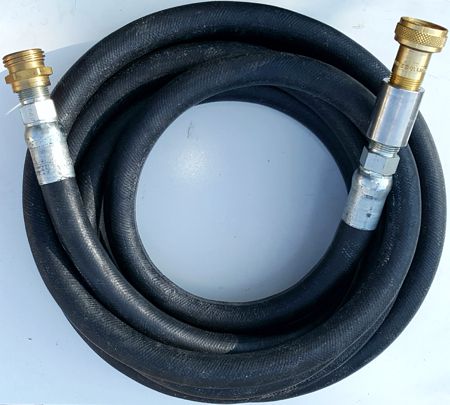

- 1 inch hose and piping
- Easy setup – No tools required
- Pilot burner to maintain main burner flame
- Reflective markings (be seen while setting up)
- Maintain vertical on grades up to 20 degrees
Patent pending #62/531,487
Copyright, All rights reserved. 2016
PDF product downloads
To receive a Pilot Burner Upgrade contact Responder Training Enterprises, LLC. to check eligibility.
