This kit is designed to allow incident personnel to connect a propane flare to a CNG system and safely manage the higher pressures using the included components.
The Responder Training Enterprises (RTE) CNG Vent/Flare Kit meets the Environmental Protection Agency (EPA) and Department of Environmental Management mitigation hierarchy.
Environmental frameworks explicitly mandate a three-step mitigation order for managing high-pressure compressed natural gas (CNG) to minimize climate and safety impacts:
1. Direct Transfer (Highest priority: capture and reuse gas with zero/minimal release).
2. Flaring (Second priority: combust methane efficiently if capture isn’t viable, as flared CO₂ is significantly less damaging to the atmosphere than raw methane).
3. Venting to Atmosphere (Absolute last resort when containment and combustion are impossible).
The RTE kit aligns tightly with this exact sequence.

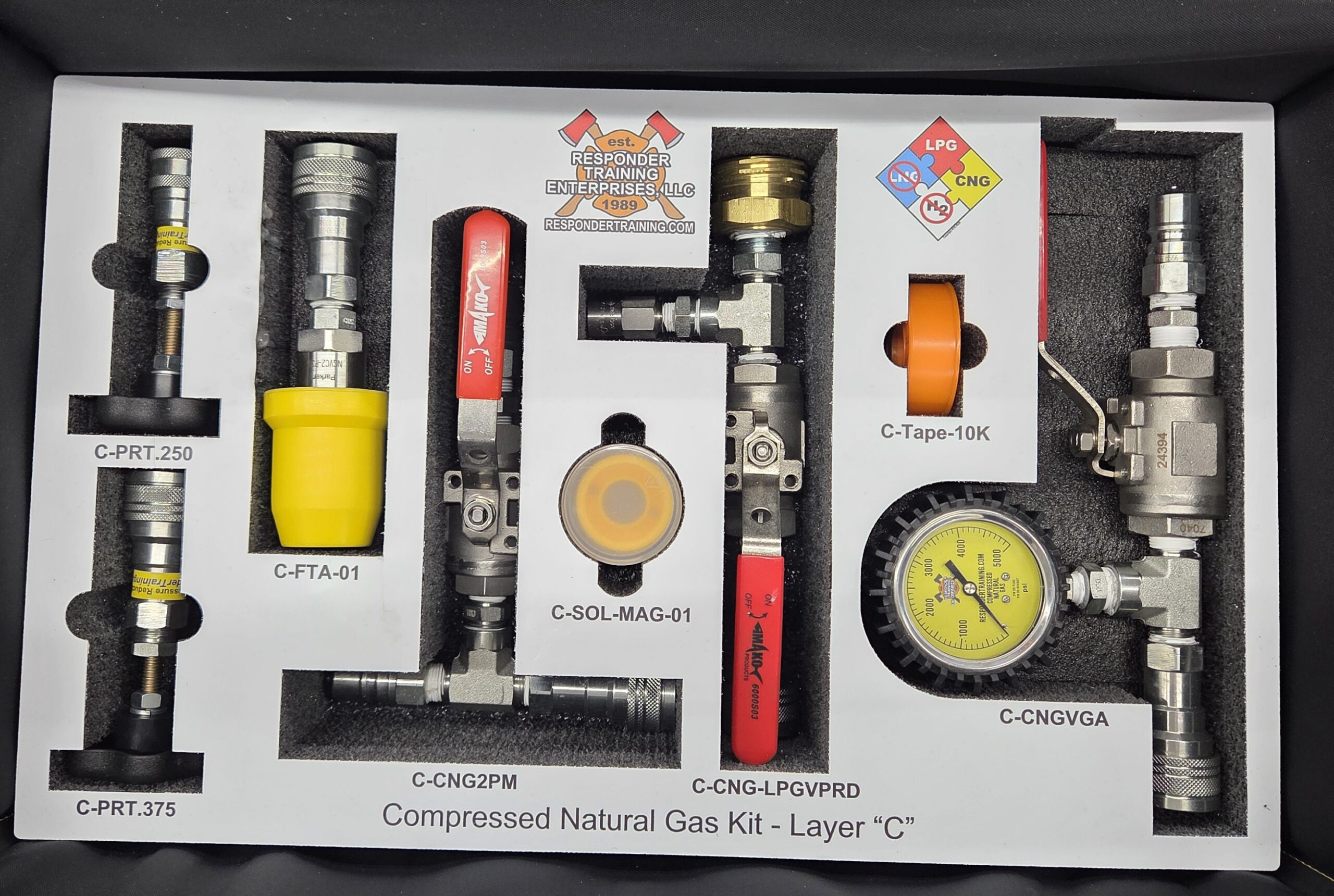

It includes a full pressure valve assembly with pressure gauge, a “Direct Vent Valve Assembly”. This assembly allows the responder to connect and control full pressure system (3600 psi).
The kit also has a valve assembly with 1 3/4″ ACME connector Assembly and a PRD that opens up (350psi). As soon as the audible alert is heard, the control valve MUST be partially shut down/closed to limit downstream pressure protecting the propane hose .
Use of safety glasses and body protection is required for the use of this kit.
- Your NEWLY UPDATED CNG Adapter Kit will contain at a minimum the following items:

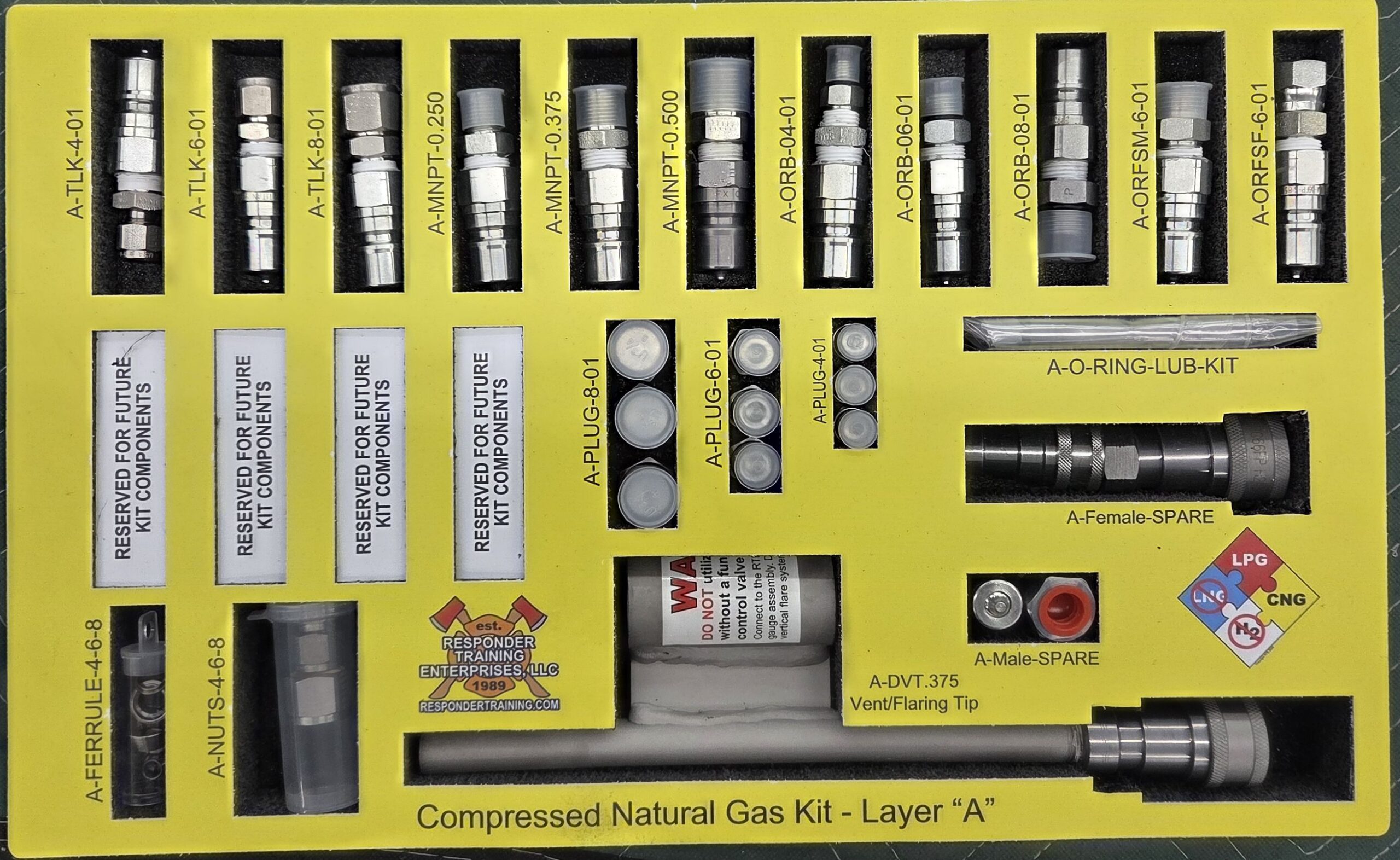

- The kit includes multiple industry standard connection options with quick connectors, that include: ORB, ORF, Compression (3 sizes), NPT and more.
- 1 set each spare compression Ferrules and nuts (Swagelok)
- TWO 25-foot CNG hoses with quick connectors
- ONE 4-foot CNG hose with quick connectors and control valve
- One 3/8″ CNG Line Pressure Release Tool
- One 1/4″ CNG Line Pressure Release Tool
- CNG Fuel Transfer/Defueling Adapter
- Vehicle Receptacle / Fill Port Adapters
- Fuel transfers and vent/flaring through fill-port nozzles

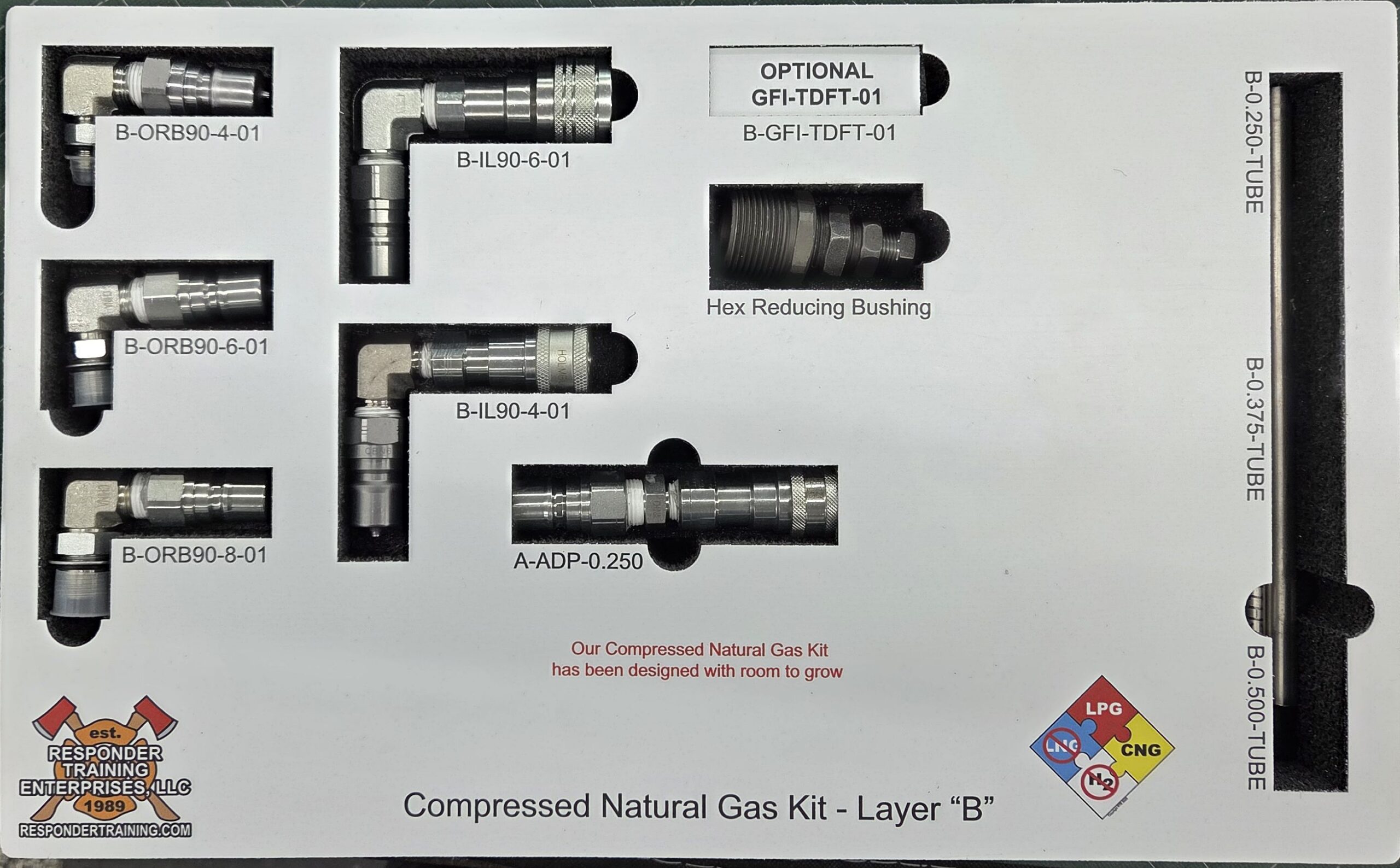

- Assorted system connection options with quick connectors,
- Valve assembly with relief valve that provides an audible alert when the system flow exceeds the preset pressure allowing propane hose to be used as an extension.
- Full pressure valve assembly with pressure gauge
- Fuel Transfer Wiring Harness Kit – Working with manufacturers and suppliers we decided on the most common plugs and then added some more options, I like options. This kit provides 3 of the most common terminal ends used on CNG tanks and cylinders.
- Fuel Transfer Wiring Harness Kit allows users to bypass electronic cylinder solenoids using auxiliary magnets and manual overrides tools
- Solenoid Valve Troubleshooting Magnet Tool, Auxiliary override magnets
- Our CNG direct vent/flaring tip to allow full tank pressure to be vented or flared to atmosphere. The Tip should be used with a 1″ pipe flare the utilizes a full quad base covering at least 64 sq. feet for stability. The tip allows flaring or venting of high-pressure flammable gases vertically, to ensure safety and efficiency..
- 2″ Internal Solenoid Defueling valve override tool
- Hard Case
